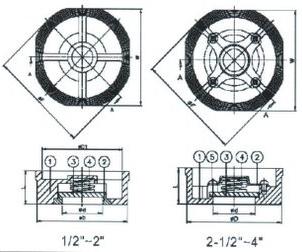

Размеры
| DN |
d |
D |
F |
W |
кг/шт |
NPS |
d |
D |
F |
W |
L |
кг/шт |
| 15 |
15 |
45 |
53 |
16 |
0.1 |
1/2" |
0.59 |
1.77 |
2.09 |
1.77 |
0.63 |
0.22 |
| 20 |
20 |
55 |
63 |
19 |
0.16 |
3/4" |
0.79 |
2.17 |
2.48 |
2.17 |
0.75 |
0.35 |
| 25 |
25 |
65 |
73 |
22 |
0.28 |
1" |
0.98 |
2.56 |
2.87 |
2.56 |
0.87 |
0.62 |
| 32 |
32 |
78 |
84 |
28 |
0.52 |
1 1/4" |
1.26 |
3.07 |
3.31 |
3.07 |
1.1 |
1.15 |
| 40 |
38 |
89 |
94 |
32 |
0.7 |
1 1/2" |
1.5 |
3.5 |
3.7 |
3.5 |
1.26 |
1.54 |
| 50 |
50 |
98 |
107 |
40 |
1.1 |
2" |
1.97 |
3.86 |
4.21 |
3.86 |
1.57 |
2.43 |
| 65 |
62 |
118 |
126 |
46 |
1.58 |
2 1/2" |
2.44 |
4.65 |
4.96 |
4.65 |
1.81 |
3.48 |
| 80 |
76.5 |
134 |
144 |
50 |
1.78 |
3" |
3.01 |
5.28 |
5.67 |
5.28 |
1.97 |
3.92 |
| 100 |
96 |
154 |
162 |
60 |
3.3 |
4" |
3.78 |
6.06 |
6.38 |
6.06 |
2.36 |
7.28 |
|
 |
| Материалы частей крана
|
| № |
Часть |
Материал |
| 1 |
Корпус |
316 |
| 2 |
Блок |
316 |
| 3 |
Диск |
316 |
| 4 |
Пружина |
316 |
| 5 |
Винт |
316 |
|
